RUNVA ELECTRIC WINCH 12000 lb - 5443 kg - 24V WITH CS COMMAND
Original price
€879,62
-
Original price
€879,62
Original price
€879,62
€879,62
-
€879,62
Current price
€879,62
💬 Contattaci prima di procedere con l'ordine, per assicurarci che il prodotto sia disponibile.
INDUSTRIAL 4x4

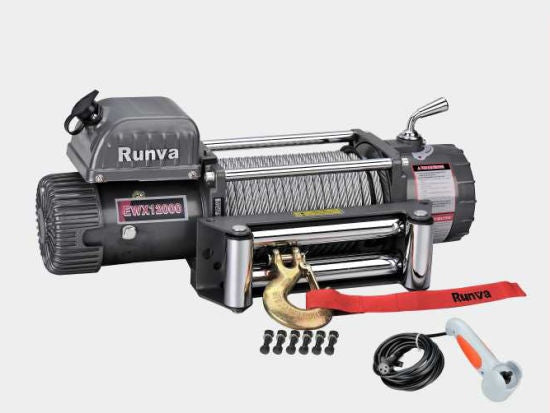

RUNVA ELECTRIC WINCH 12000 lb - 5443 kg - 24V WITH CS COMMAND
SKU: EWX12000UWS24V
Rated line pull 12,000 lb (5,443 kg)
Motor: 12V permanent magnet: Input: 5.4 kW/7.2 HP; Output: 2.7 kW/3.6 HP
24V: Input: 5.3kW/7.1hp; Output: 3.3 kW/4.4 HP
Automatic screw cone brake
3-stage steel planetary gear
Gear reduction ratio 230:1
Clutch Sliding ring gear clutch
Cable (diameter×L) Ø13/32"×83.7'(Ø10.2mm×25.5m)

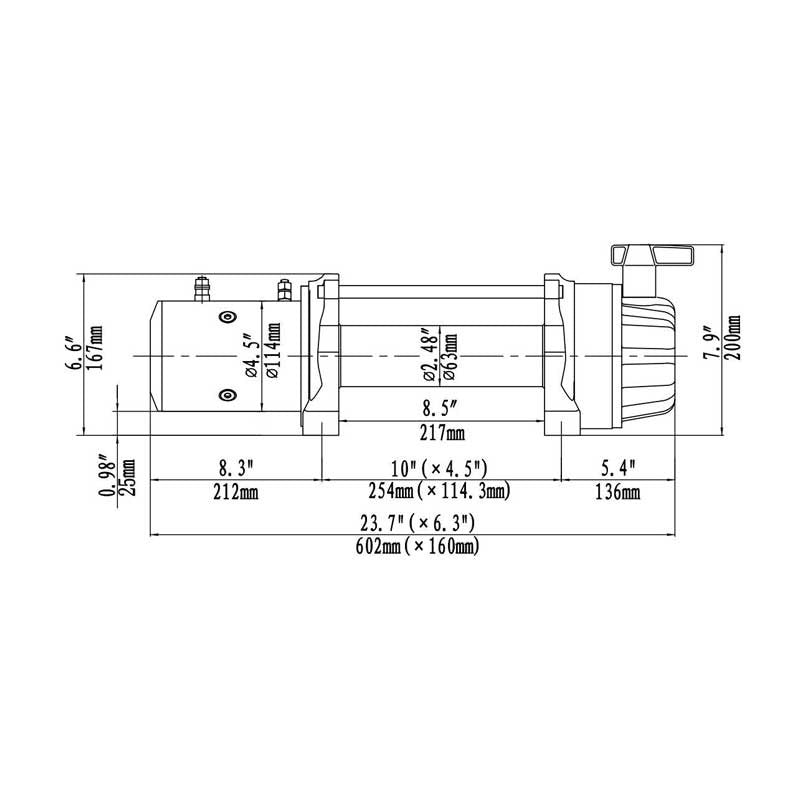

Drum dimensions (diameter×L) Ø2.48"×8.8" (Ø63mm×223mm)
Mounting Bolt Pattern 10"×4.5" (254×114.3 mm)4-M10
Net weight 92.6 lbs/42.0 kg
